Reliable Cap Retorquers

A cap retorquer is a perfect solution when production speeds are such that hand tightening is not an option.

Adding a retorquer will ensure that the caps are correctly tightened to the right specification either after an induction sealer has adhered the cap liner to the container or after an operator has manually applied the cap by hand.

CAPPERS Retorquers 2Hedro banner machine Aesus

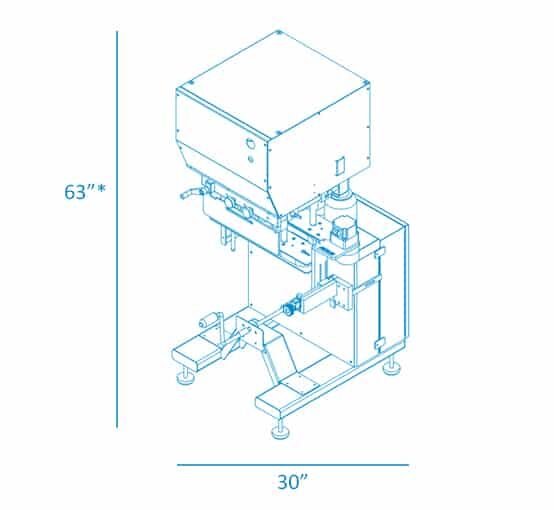

ECO Cap 2 Inline Retorquer  CapperSpindleIcon 1 Aesus

An Eco Cap 2 Inline retorquer is a very small and compact cap retorquer that allows you to refine the work done by a previous capper machine or an operator. This is an ideal solution for both slow and medium speed line.

Specifications

    • Speeds of 100 bottles per minute
    • Cap diameter up to 5″
    • Bottle diameter (in) from 1” to 8“
    • Bottle height from 1.5” to 12” Tall

Features

    • 2 pairs of torquing wheels
    • Manual height adjustment

Optional Accessories

    • Double sided guide belts
    • Safety interlocked Lexan guarding
    • Indexing wheel product separation system
    • Backup sensor for accumulation with signal to stop indexing.

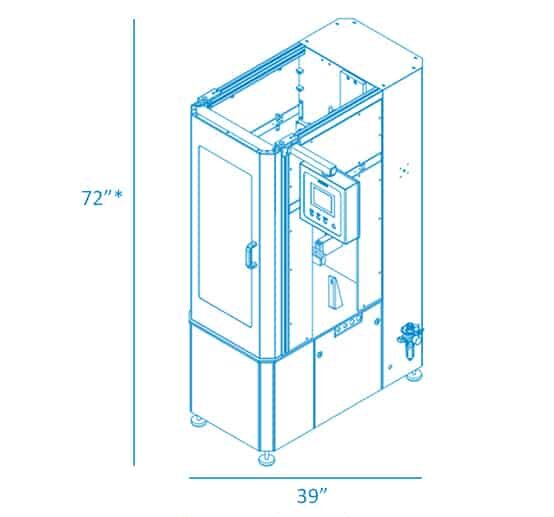

ECO Chuck Cap Retorquer  CapperRetorquerIcon 1 Aesus

This model offers tremendous value for the price. A servo driven chuck repeatably tightens caps with accurate torque. Fully interlocked guarding is included as standard on this machine.

Specifications

    • Speeds of 40 bottles per minute
    • Cap diameter up to 5″
    • Bottle diameter (in) from 1” to 8“
    • Bottle height from 1.5” to 12” Tall
    • To avoid splashes, speeds with liquid will be slower

Features

    • Fully interlocked guarding with safety hinge
    • Servo driven motorized chuck system
    • Pneumatic gating system

Optional Accessories

    • Backup sensor for accumulation with signal to stop indexing
    • Magnetic clutch
