High-Grip Chuck Capping Technology With Cap Sorting Elevators

Chuck cappers are mainly chosen to when positive control of the container is required in order to reduce cross threads of caps and to allow for consistent cap torque. On all of our chuck capping machines, the cap is completely controlled and then placed onto the top of the container, pre-spin in the first station and then the second station creates the final and consistent torque of the cap.

Chuck capping machines are used with cap sorting elevators or vibratory bowls to completely automate the cap sorting process and application of the cap onto the bottles for continuous operation.

CAPPERS Chuck cappers picture crop Aesus

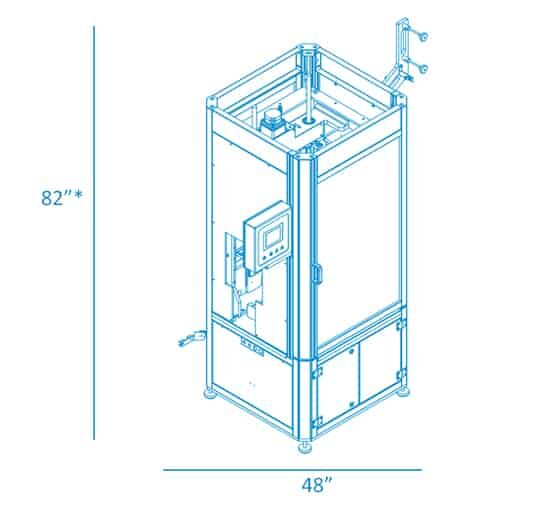

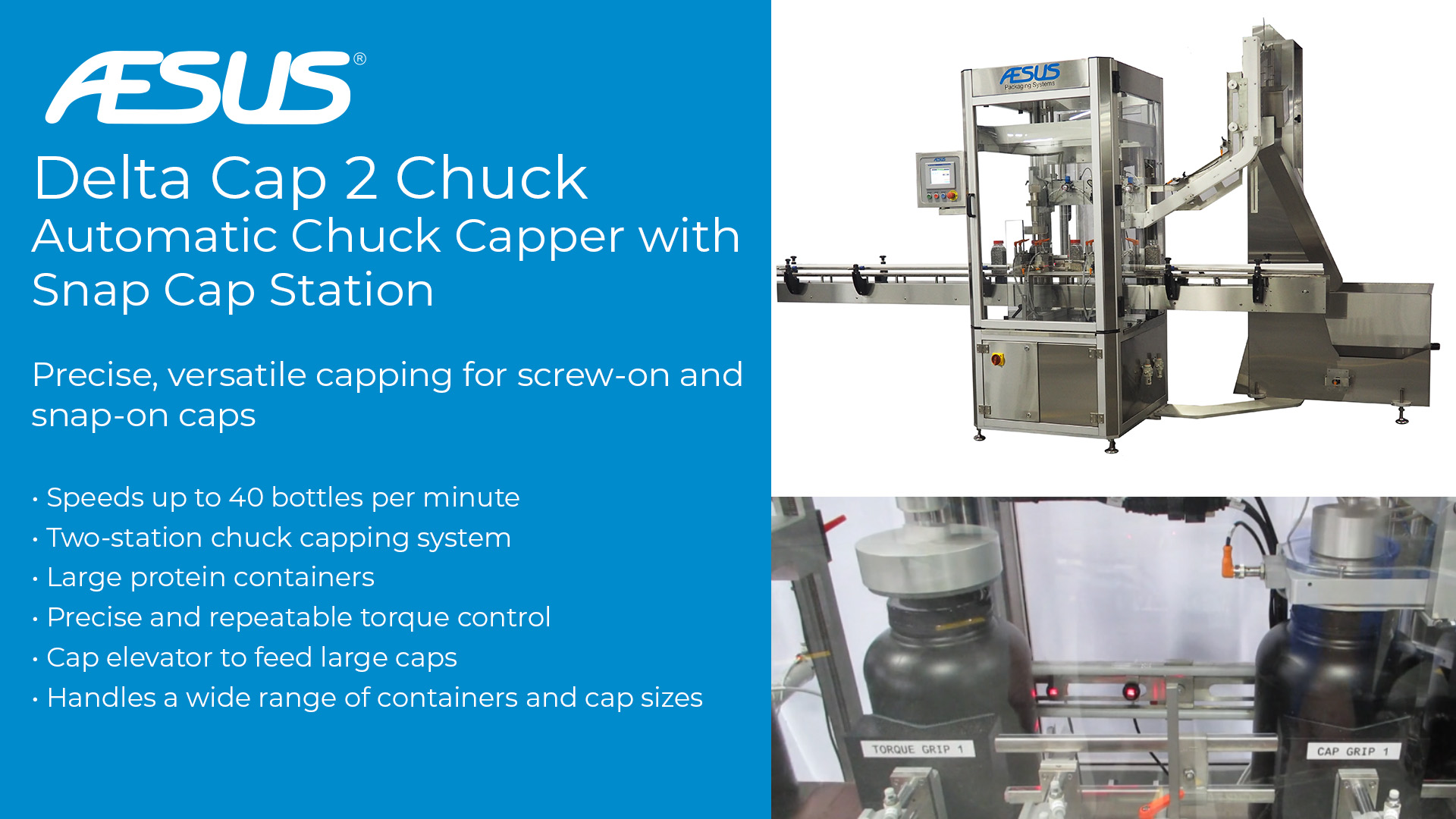

Delta Chuck Cap 2  CapperChuck Aesus

Two station Chuck Capper (1 pre-spin station, 1 final torquing station) with inline gating – typically for large containers. Both torquing stations are servo motor controlled.

Specifications

    • Speeds of 40 bottles per minute*
    • Bottle diameter (in) from 1” to 8“
    • Bottle height from 2” to 12” Tall
    • Cap diameter (in) from 0.625” to 5“
    • Cap height from 0.25” to 1.25” Tall

*To avoid splashes, speeds with liquid will be slower

Features

    • Servo motor controlled torquing stations
    • Safety interlocked lexan guarding
    • Motorized height adjustment
    • Color Touchscreen and PLC with recipe management
    • Pneumatic indexing system w/clamping station
    • Pneumatic actuators for capping and torquing up/down
    • Backup sensor for accumulation/output signal to stop indexing

Available Options for Cap Feeding

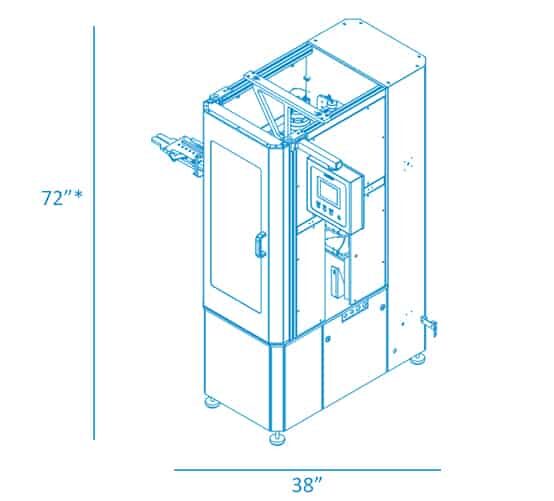

    Eco Starcap CapperChuck Aesus

    Automatic Push Through 2 Station Capper (1 pre-spin station, 1 final torquing station) with an indexing starwheel. Both torquing stations are servo motor controlled.

    Specifications

      • Speeds of 50 bottles per minute*
      • Bottle diameter (in) from 1” to 4“
      • Bottle height from 2” to 12” Tall
      • Cap diameter (in) from 0.625” to 5“
      • Cap height from 0.25” to 1.25” Tall

    *To avoid splashes, speeds with liquid will be slower

    Features

      • Both torquing stations are servo motor controlled.
      • Safety interlocked lexan guarding
      • Manual height adjustment
      • Color Touchscreen and PLC with recipe management
      • Servo driven bottle starwheel indexing system
      • Pneumatic actuators for capping and torquing up/down

    Available Options for Cap Feeding

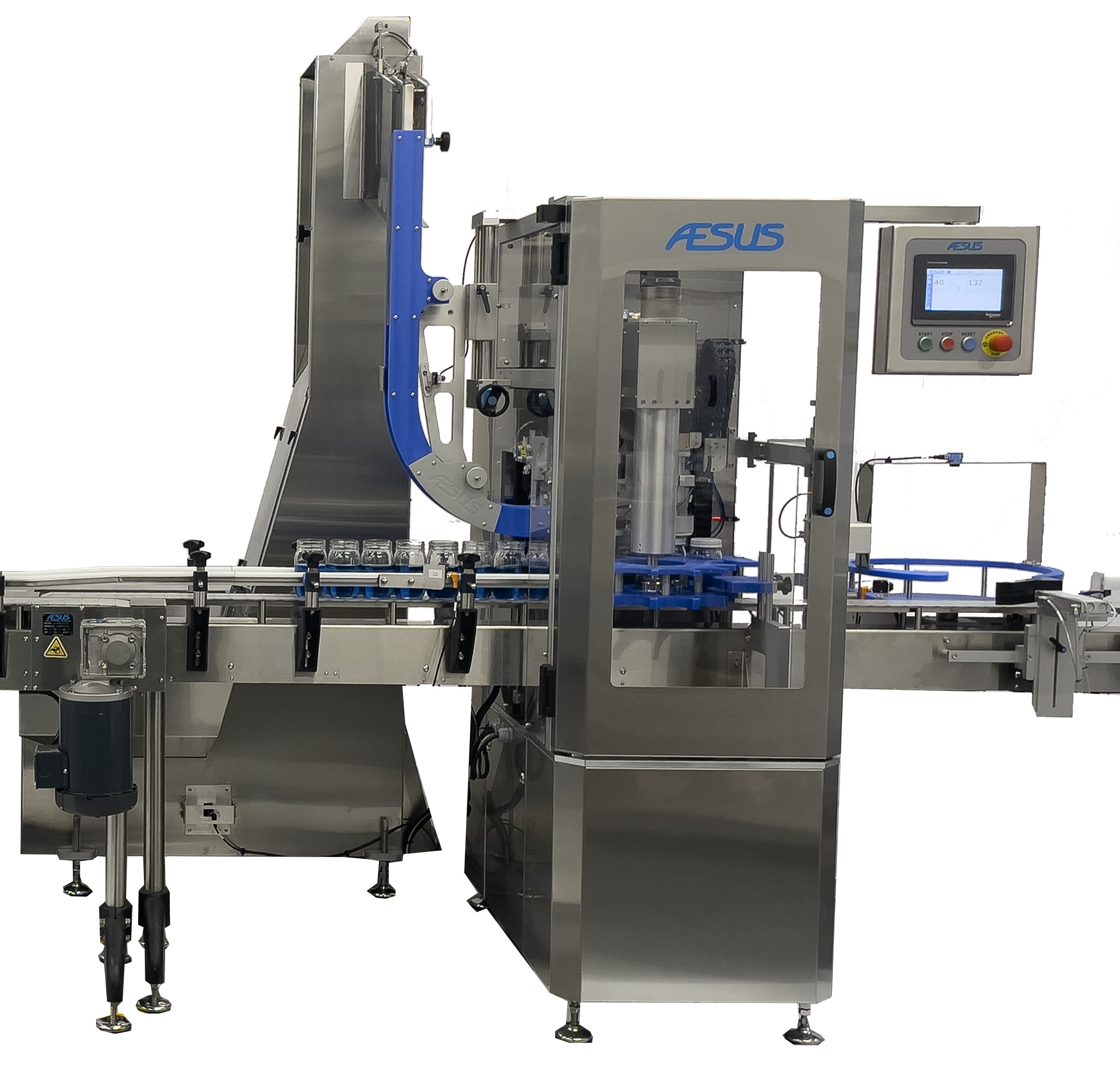

          Delta StarCap CapperChuck Aesus

          Automatic Push Through 2 Station Capper (1 pre-spin station, 1 final torquing station) with an indexing starwheel. Both torquing stations are servo motor controlled.

          Specifications

            • Speeds of 50 bottles per minute*
            • Bottle diameter (in) from 1” to 8“
            • Bottle height from 2” to 12” Tall
            • Cap diameter (in) from 0.625” to 5“
            • Cap height from 0.25” to 1.25” Tall

          *To avoid splashes, speeds with liquid will be slower

          Features

            • Both torquing stations are servo motor controlled.
            • Safety interlocked lexan guarding
            • Motorized height adjustment
            • Color Touchscreen and PLC with recipe management
            • Servo driven bottle starwheel indexing system
            • Pneumatic actuators for capping and torquing up/down
            • Backup sensor for accumulation/output signal to stop indexing

          Available Options for Cap Feeding

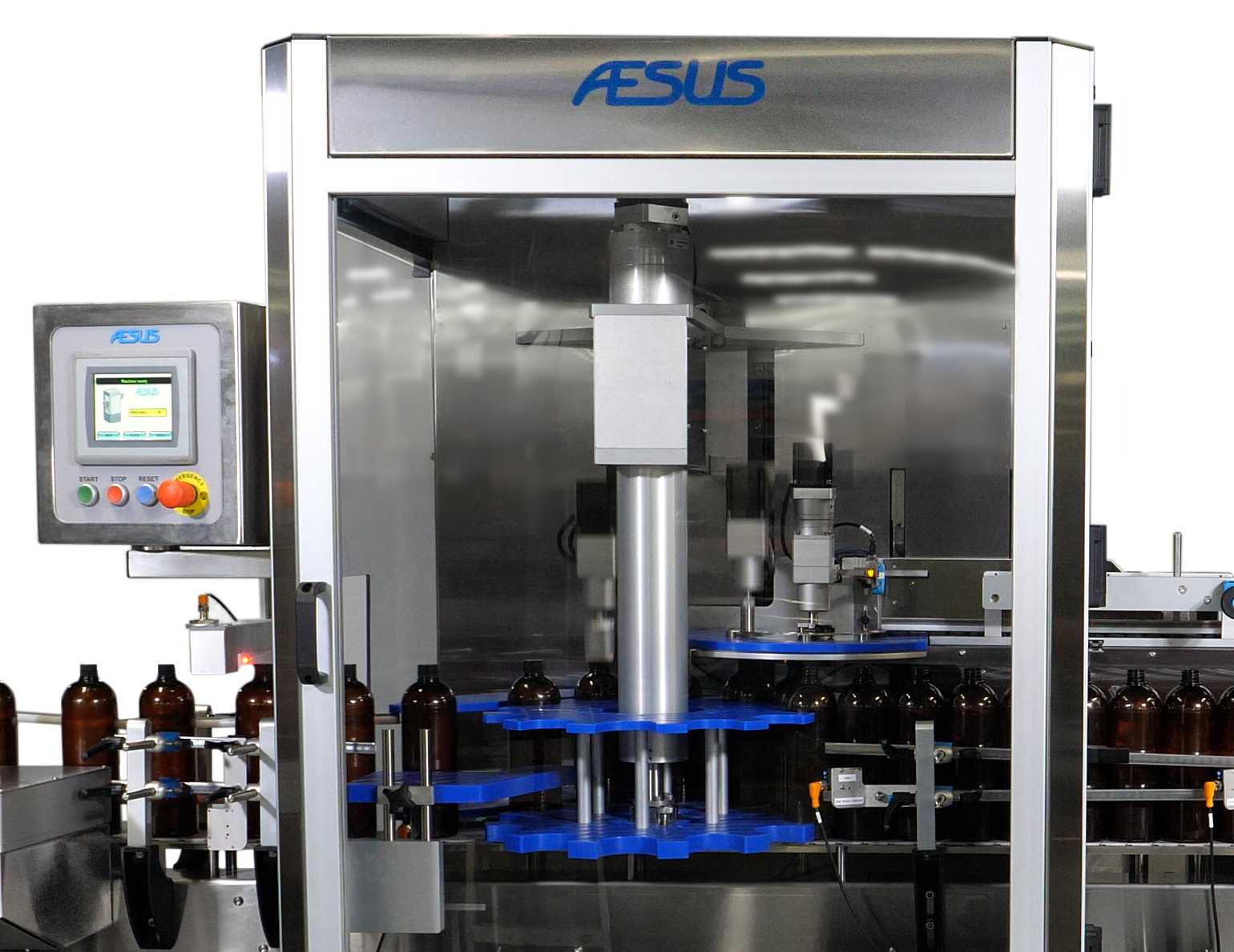

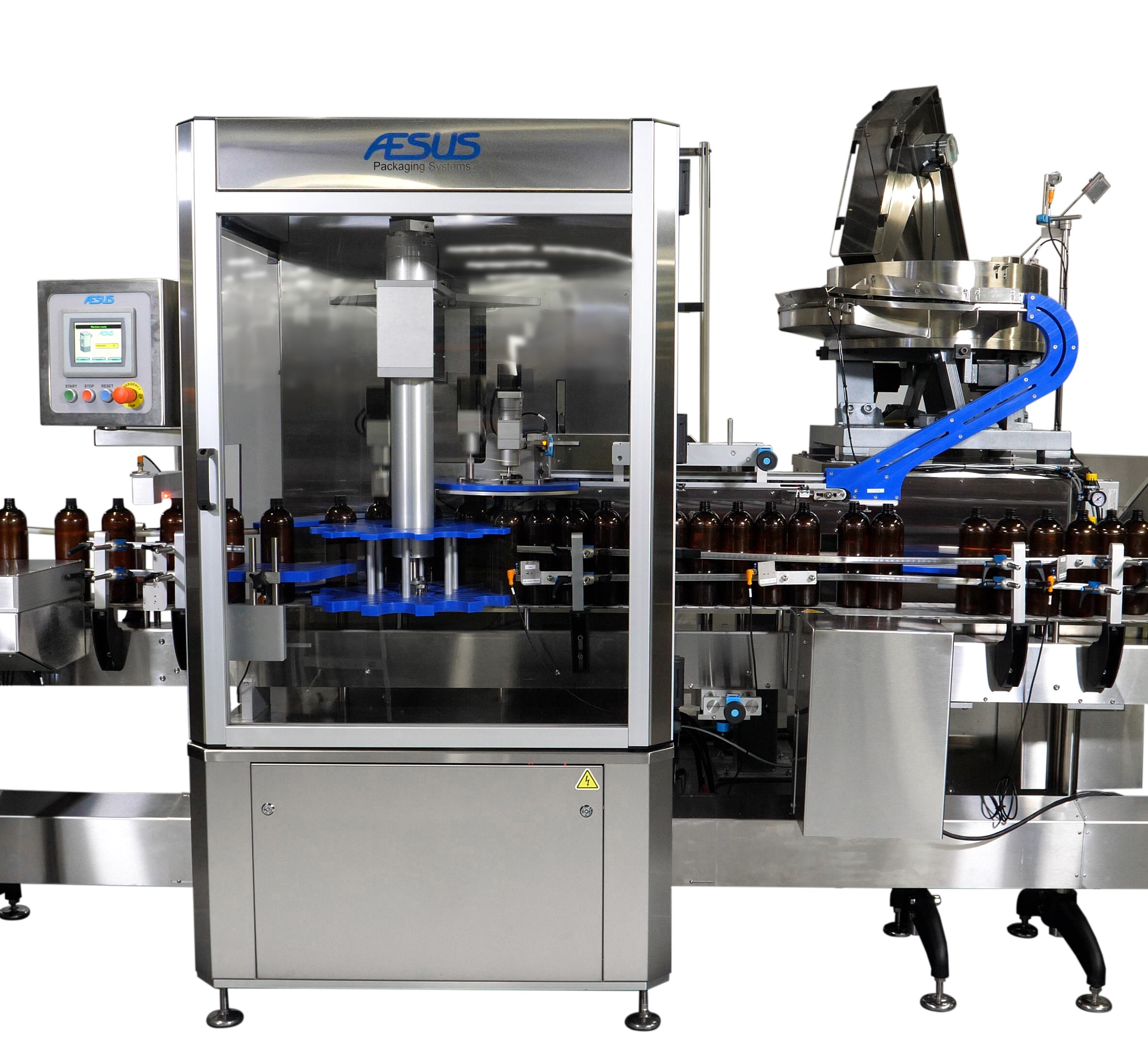

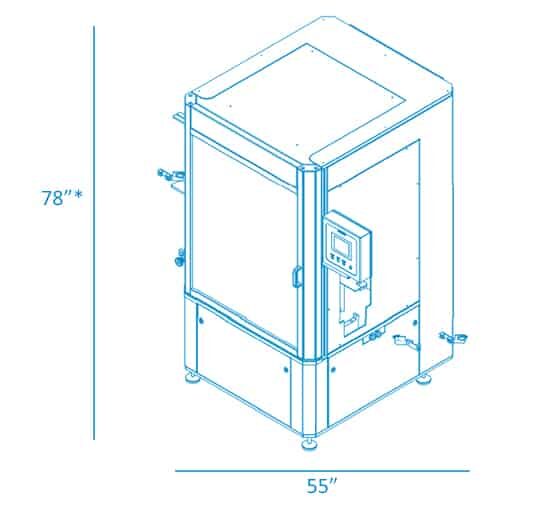

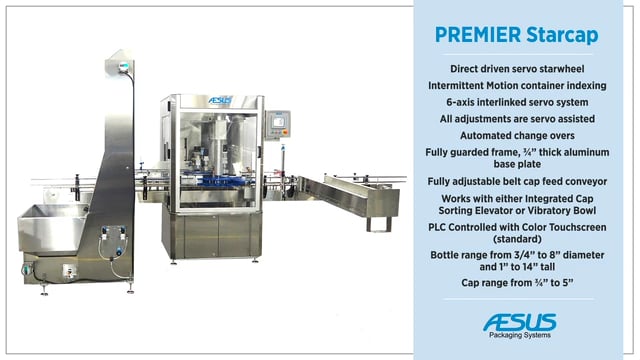

                Premier Starcap CapperChuck Aesus

                Automatic Push Through 2 Station Capper (1 pre-spin station, 1 final torquing station) with a indexing starwheel.



                Specifications

                  • Speeds of 80 bottles per minute*
                  • Bottle diameter (in) from 1” to 8“
                  • Bottle height from 2” to 15” Tall
                  • Cap diameter (in) from 0.625” to 5“
                  • Cap height from 0.25” to 1.25” Tall

                *To avoid splashes, speeds with liquid will be slower

                Features

                  • Servo motor controlled push through cap engagement station and final torquing station.
                  • Fast feeding cap conveyor, reducing minimum accumulated cap to operate.
                  • Safety interlocked lexan guarding.
                  • Motorized height adjustment.
                  • Color Touchscreen and PLC with recipe management.
                  • Pneumatic indexing system with clamping/torquing action.
                  • Servo driven bottle starwheel indexing system.
                  • Pneumatic actuators for capping and torquing up/down.
                  • Product & Backup sensor accumulation/output signal to stop indexing.

                Available Options for Cap Feeding

                    Available Options for Cap Sorting and Feeding

                    CAPPERS Delta Cap4 Spin Accordion picture 2 Aesus
                    CAPPERS Elevator Acordion 1 300x300 1 Aesus

                    Cap Sorting Elevator

                    The Cap Sorting Elevator sorts flat caps at the same time as acting as a bulk feeder and elevator.  The cap sorting elevator comes in multiple sizes depending on your cap diameter.  Not all caps are able to be sorted in a cap elevator.   The elevator feeds the caps up a belt with slats in a way that most caps are properly oriented.  The ones that get through are rejected in a reject chute.  The caps are then fed into a chute the leads to the capper.



                    Specifications

                      • For Flat caps up to 5” diameter
                      • 6 Cubic Ft hopper with 12” wide chain
                      • Low level sensor to automatically start / stop the feeding of the caps into the cap chute
                      • Dial indicators or rulers for quick change over
                      • Larger cap elevators are available
                    CAPPERS Delta Cap4 Spin Accordion picture 4 Aesus
                    CAPPERS Feeder bowl Acordion 2 Aesus

                    Vibratory Bowl

                    Vibratory Bowls are perfect for special types of caps that cannot be fed in a cap sorting elevator.  The bowl is tooled to meet the needs of your cap.  Not all caps are able to run on the same bowl.  The bowl can be placed on top of certain cappers or on its own base.  A properly tooled bowl will orient the caps so that they are all oriented in the same way.  They are then fed into a chute that leads to the capper.



                    Specifications

                      • Available in either 24” or 30” diameter
                      • Stainless Steel construction with Anodized parts
                      • Low level sensor to automatically start / stop the feeding of the caps into the cap chute.
                      • Manual or motorized up and down options
